This section outlines the analytical process that was carried out in order to understand the problem domain, define the system requirements and structure the domain model in accordance with the principles of Domain-Driven Design (DDD).

1.1. Problem analysis

1.1.1. Context

Students at the University of Bologna often need places to study as the libraries are often full. They also need spaces where they can work in groups without having to be silent. Currently, there is no centralised, real-time method of verifying whether a classroom, laboratory or lecture hall is free and available for individual or group study during these periods.

1.1.2. Problem statement

The current ecosystem raises several critical issues:

1. Data fragmentation: schedule information is scattered across course and/or teacher web portals, making it difficult to gather information about room occupancy.
2. Lack of real-time updates: official schedules do not account for last-minute or unofficial activities, such as seminars or other events.
3. Inefficient resource usage: students who search for a spot at random are often forced to leave a room because they were unaware that a lecture was about to start.

1.1.3. Proposed solution

AlmaSpot is a system that aggregates official data and provides students with an intuitive interface to find free rooms and receive proactive push notifications. It also enables administrators to manage external activity manually.

1.1.4. Roles

The system recognises two distinct roles:

User	Role	Goals
Student	Passive	Wants to find an immediate study spot based on location and time. Needs to be notified when a room becomes occupied or an unscheduled activity occurs.
Admin	Active	Responsible for ensuring the accuracy of availability data. They need to be able to add and manage external activities.

1.2. Requirements analysis

1.2.1. System requirements

1. Schedule acquisition: the system must autonomously acquire heterogeneous schedule data from university sources (open data) and normalise it into a consistent format.
2. Availability calculation: the system must determine the real-time status of a resource by intersecting official lectures and administrator activities.
3. Smart Discovery (AI): the system must support natural language queries (e.g. “I’d prefer not to move to a different campus”) to help users find solutions if a single room is not available for the entire requested period.
4. Proactive notification: the system must follow a ‘push’ model to notify users who have subscribed to specific solutions of state changes.

1.2.2. Functional requirements

1. As a user, I want to be able to find an available room for a specific period of time.
2. As a user, I want to be able to choose the location, for example the city and site.
3. As a user, I want to be able to choose the type of room (such as a lab or a class).
4. As a student, I want to be informed of any unexpected changes regarding the rooms I am interested in, such as a room no longer being available.
5. As a student, I want to be able to choose the best solution for my needs.
6. As an admin, I want to be able to add a new activity to an available room.
7. As an admin, I want to be able to remove an activity.

1.2.3. Non-functional requirements

1. The backend must utilize at least two distinct technology stacks (Go for data ingestion, Node. js for API/Web).
2. The application must be containerized via Docker and orchestrated via Docker Compose.
3. The frontend must be a Progressive Web App (PWA) optimized for mobile devices.
4. State changes (e.g., Admin override) must be propagated to connected clients via WebSockets/Push.

1.3. Domain model

This section defines the conceptual model of the business domain, establishing the ubiquitous language shared between developers and domain experts.

1.3.1. Ubiquitous language

Term	Definition	Context
Assistant	The conversational component of the system that interprets natural language queries to discover (compound) Solutions when a direct search fails.	Search
Request	A natural language input provided by the Student describing their study needs.	Search
Suggestion	The answer generated by the Assistant, containing a proposed Plan when possible, otherwise requests a refinement of the search parameters.	Search
User	A person that uses the system. 1. Student. 2. Administrator.	Core, Authentication, Notification
Room	A physical spatial unit identified by a name and a Site. Can be: 1. Laboratory. 2. Class.	Core, Search, Notification
Period	A specific start-time and end-time interval.	Core, Search, Notification
Activity	It occupies a Period in a specific Room. Can be: 1. Internal Activity: a planned academic activity imported from the official schedule, such as lectures and exams. 2. External Activity (or Unofficial Activity): a non-academic activity, such as seminars.	Core, Notification
Slot	A Period available for use in a Room.	Search, Notification
Plan	The result provided to the Student in response to a request. It can be a simple solution (a single Slot) or, if unavailable, a compound solution generated by a Assistant (multiple Slots).	Search, Notification
Notification	A proactive message sent to a Student with an active interest in a Room. It is triggered by an unexpected Activity that invalidates the student’s current Plan.	Notification
Subscription	The link between a Student and a specific Plan that authorizes the delivery of Notifications.	Notification
Campus	A macro geographical area of the university (e.g., Cesena, Bologna). It is made up of multiple Site. May also be called City or Location.	Core
Site	A specific building within a Campus, identified by its address.	Core
Schedule	The aggregate collection of all Internal Activities imported and normalized from university sources. It represents the official timeline before any Exception is applied.	Core

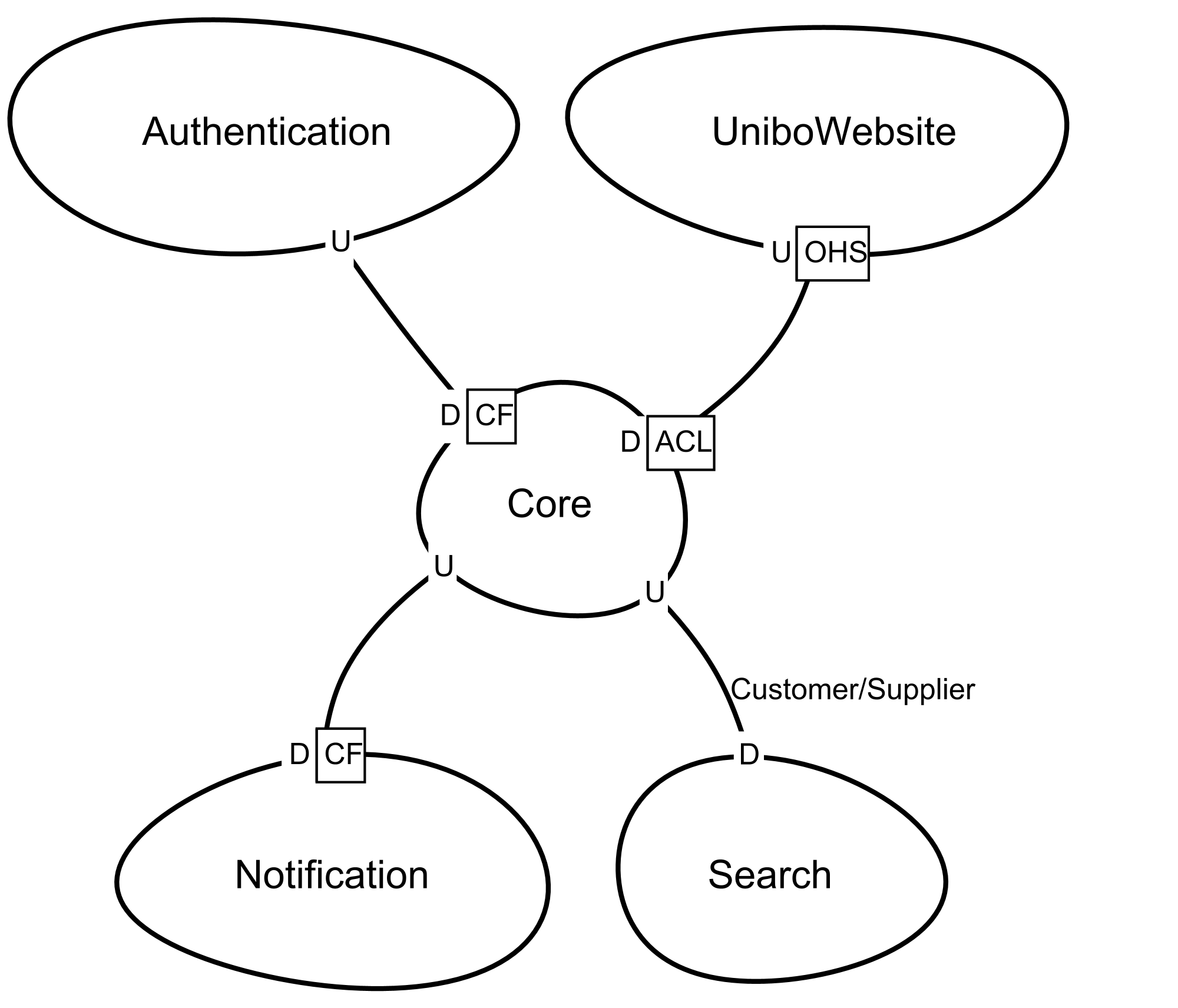

1.3.2. Bounded context

The domain is divided into specific contexts.

1. Core: Responsible for interacting with the open-data context of the university (www.unibo.it) via an AntiCorruption Layer (ACL) to obtain information about scheduled lectures. It also manages external activities (e.g. seminars), which can be added by administrators who have logged in. It is also responsible for returning free rooms in a given period to the search context.
2. Search: It interacts with users to help them find the room they need. Moreover, it acts as an interpreter by exploiting Gemini’s API to understand natural language queries formulated by the user, searching for complex solutions when a single room is unavailable for the required period. It has a customer/supplier relationship with the core context, from which it obtains the list of available rooms.
3. Notification: Responsible for the “proactive” logic. It monitors changes in activities and communicates these to users with active subscriptions that are no longer valid. Since the core context emits an event every time a new activity is added, it is a conformist context.
4. Authentication: An auxiliary context exploited by the core to manage administrator authentication.

There is a shared kernel among the bounded contexts that contains the definitions of spatial concepts (campus and site), plan, slot and period. This decision was made because these concepts are crucial, and any change to their definitions must be reflected in all contexts that handle them.
